Docker Compose Reference

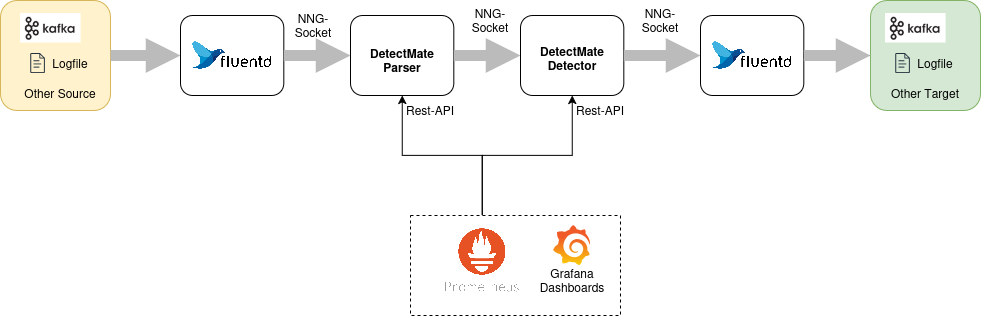

DetectMate Service ships a comprehensive Docker Compose configuration that includes all services required to consume and process logs and send alerts. This reference explains the settings of the docker-compose.yaml. The following image illustrates the log data pipeline deployed by Docker Compose:

Log file ingestion is handled by Fluentd. It supports reading from various systems and can convert the data to a specific format before sending it to any other target. Using the default setup, fluentd reads lines from a file and sends them to the DetectMate parser. The parser processes the data and forwards it to both detector services shipped by default, detector and detector-rule. If either detector finds an anomaly, it sends it to the fluentout process, which can communicate with various targets, such as Elasticsearch, Kafka, or a log file.

The following sections will explain the docker-compose.yml service by service.

Fluentin

The first component in this configuration is the service fluentin, which is a fluentd container. It reads data from a file, formats it to the proper detectmate protobuf format, and then forwards it via a nanomsg queue socket to the parser service.

While reading from a file is just an example in this setup, you can refer to the Fluentd documentation for guidance on reading from other sources.

Building the image

Docker Compose builds the fluentin image using the configuration in the file container/Dockerfile_fluentd. This Dockerfile uses the official Fluentd image for the base and adds the necessary Fluentd plugins.

Volumes

fluentin mounts the following volumes using bind-mount.

• container/fluentin:/fluentd/etc provides the fluentd configuration. The file container/fluentin/fluent.conf can be used to reconfigure fluentd to read from other log sources.

• container/fluentlogs:/fluentd/log exposes the directory containing logfiles to read. fluentin reads all logs from the file some.log by default.

• container/run:/run is mounted to hold the socket files for inter process communication. In this configuration, fluentin and parser are communicating via unix domain sockets using NNG (Nano Message Next Generation) for maximum performance.

Depends

This services depends on the parser service, because parser creates the socket file to establish communication.

Parser

The second component of the logdata analysis pipeline is the service parser. This DetectMate service listens for logs received from the fluentin service on a Nano Message socket. It expects the data in the LogSchema format used by DetectMate and sends the parsed data using the ParserSchema to another Nano Message socket provided by a DetectMate detector service.

Building the image

Docker compose builds the detectmate image using the Dockerfile in the root of the DetectMate repository. This image is the same for parser and detector.

Volumes

All DetectMate containers (parser, detector and detector-rule) need the following volumes mounted:

• container/config:/config provides the DetectMate configuration. Each DetectMate Service needs one settings-file for the general service configuration and one config file for the specific DetectMate component. For parser these files are parser_settings.yaml for service settings and parser_config.yaml that holds the component-specific parameters.

• container/logs:/logs exposes all log files that are generated by DetectMate services. Mostly needed for debugging.

• container/run:/run is mounted to hold the socket files for inter process communication. fluentin and parser communicate via the file ipc:///run/parser.engine.ipc. parser fans the parsed data out to both detectors: parser and detector communicate via the file ipc:///run/detector.ipc, and parser and detector-rule communicate via ipc:///run/detector-rule.ipc (see out_addr in parser_settings.yaml).

Ports

The parser service exposes port 8001 (internally the service runs on port 8000). The management API server runs on this port. This service exposes metrics for the prometheus service and allows to start, stop and reconfigure the service.

Depends

This service depends on the detector and detector-rule services, because they create the socket files to establish communication.

Detector

The detector service listens for parsed logs received from the parser service on a Nano Message socket. It expects the data in the ParserSchema format used by DetectMate and sends anomalies using the DetectorSchema to another Nano Message socket provided by the fluentout service. This is the NewValueDetector, which needs training data before it can flag anomalies (see the Getting Started tutorial).

Building the image

Docker compose builds the detectmate image using the Dockerfile in the root of the DetectMate repository. This image is the same for parser, detector and detector-rule.

Volumes

All DetectMate containers (parser, detector and detector-rule) need the following volumes mounted:

• container/config:/config provides the DetectMate configuration. Each DetectMate Service needs one settings file for the general service configuration and one config file for the DetectMate component-specific parameters. For detector these files are detector_settings.yaml and detector_config.yaml respectively.

• container/logs:/logs exposes all log files that are generated by DetectMate services. Mostly needed for debugging.

• container/run:/run is mounted to hold the socket files for inter process communication. parser and detector communicate via the file ipc:///run/detector.ipc and detector and fluentout use the socket ipc:///run/output.ipc.

• container/state:/state persists the values NewValueDetector has learned during training, so it survives container restarts.

Ports

The detector service exposes port 8002 (internally the service runs on port 8000). The management API server runs on this port. This service exposes metrics for the prometheus service and allows to start, stop and reconfigure the service.

Depends

This service depends on the fluentout service, because fluentout creates the socket file to establish communication.

Detector (Rule-Based)

The detector-rule service is a second detector that listens for the same parsed logs as detector, on its own socket. It runs the RuleDetector, which evaluates a fixed list of simple rules (e.g. "the parser found no matching template", "the log text contains a keyword like 'error'") against every log line instead of learning from training data. See the Getting Started tutorial for a walkthrough that triggers one of its rules.

Building the image

Docker compose builds the detectmate image using the same Dockerfile used for parser and detector.

Volumes

• container/config:/config provides detector_rule_settings.yaml and detector_rule_config.yaml.

• container/logs:/logs exposes all log files that are generated by DetectMate services. Mostly needed for debugging.

• container/run:/run is mounted to hold the socket files for inter process communication. parser and detector-rule communicate via ipc:///run/detector-rule.ipc, and detector-rule and fluentout use ipc:///run/output-rule.ipc.

Unlike detector, detector-rule does not mount container/state, since the rule-based detector doesn't persist any learned state.

Ports

The detector-rule service exposes port 8003 (internally the service runs on port 8000).

Depends

This service depends on the fluentout service, because fluentout creates the socket file to establish communication.

Fluentout

The fluentoutservice receives data from both detector and detector-rule, parses it from the proper detectmate protobuf format, and then writes the alerts to the logfiles output.%Y%m%d and output-rule.%Y%m%d respectively.

While writing to a log file is just an example in this setup, you can refer to the Fluentd documentation for guidance on writing alerts to other targets.

Since each detector's output socket is a 1:1 Nano Message Pair0 connection, fluentout needs one <source>/<match> pair per detector rather than a single shared one - but both live in the same Fluentd process and container, so no second fluentout container is needed.

Building the image

Docker Compose builds the fluentout image using the configuration in the file container/Dockerfile_fluentd. This Dockerfile uses the official Fluentd image for the base and adds the necessary Fluentd plugins.

Volumes

fluentout mounts the following volumes using bind-mount.

• container/fluentin:/fluentd/etc provides the fluentd configuration. The file container/fluentin/fluent.conf contains one <source>/<match> pair for detector (ipc:///run/output.ipc → output.%Y%m%d) and one for detector-rule (ipc:///run/output-rule.ipc → output-rule.%Y%m%d), and can be used to reconfigure fluentd to write to other targets.

• container/fluentlogs:/fluentd/log exposes the directory containing written log files. By default, fluentout writes alerts from detector to output.%Y%m%d and alerts from detector-rule to output-rule.%Y%m%d.

• container/run:/run is mounted to hold the socket files for inter process communication. fluentout talks to detector via ipc:///run/output.ipc and to detector-rule via ipc:///run/output-rule.ipc, both using Nano Message Next Generation via unix domain sockets for maximum performance.

Prometheus

Prometheus is the monitoring server that collects performance metrics from the management api that runs on the parser, detector and detector-rule on port 8000.

Volumes

prometheus mounts the following volumes:

• container/prometheus.yml:/etc/prometheus/prometheus.yml is the single prometheus configuration file, that tells prometheus to collect the metrics data from parser, detector and detector-rule at port 8000*.

• prometheus_data:/prometheus holds the prometheus database.

Ports

This service exposes port 9090

Grafana

Grafana allows to visualize the metrics data that is stored in the prometheus service. Per default the username and password are admin/admin.

Volumes

grafana mounts the following volumes:

• container/grafana/prometheus.yml:/etc/grafana/provisioning/datasources/prometheus.ymlis the config file that preconfigures grafana to use prometheus as a datasource.
• grafana_data:/var/lib/grafana is the database of grafana

Kafka

The Apache Kafka service is a message queue that can be used to read logdata from or send alerts to. It is not needed by the logpipeline and is therefore not active(commented out).
